The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

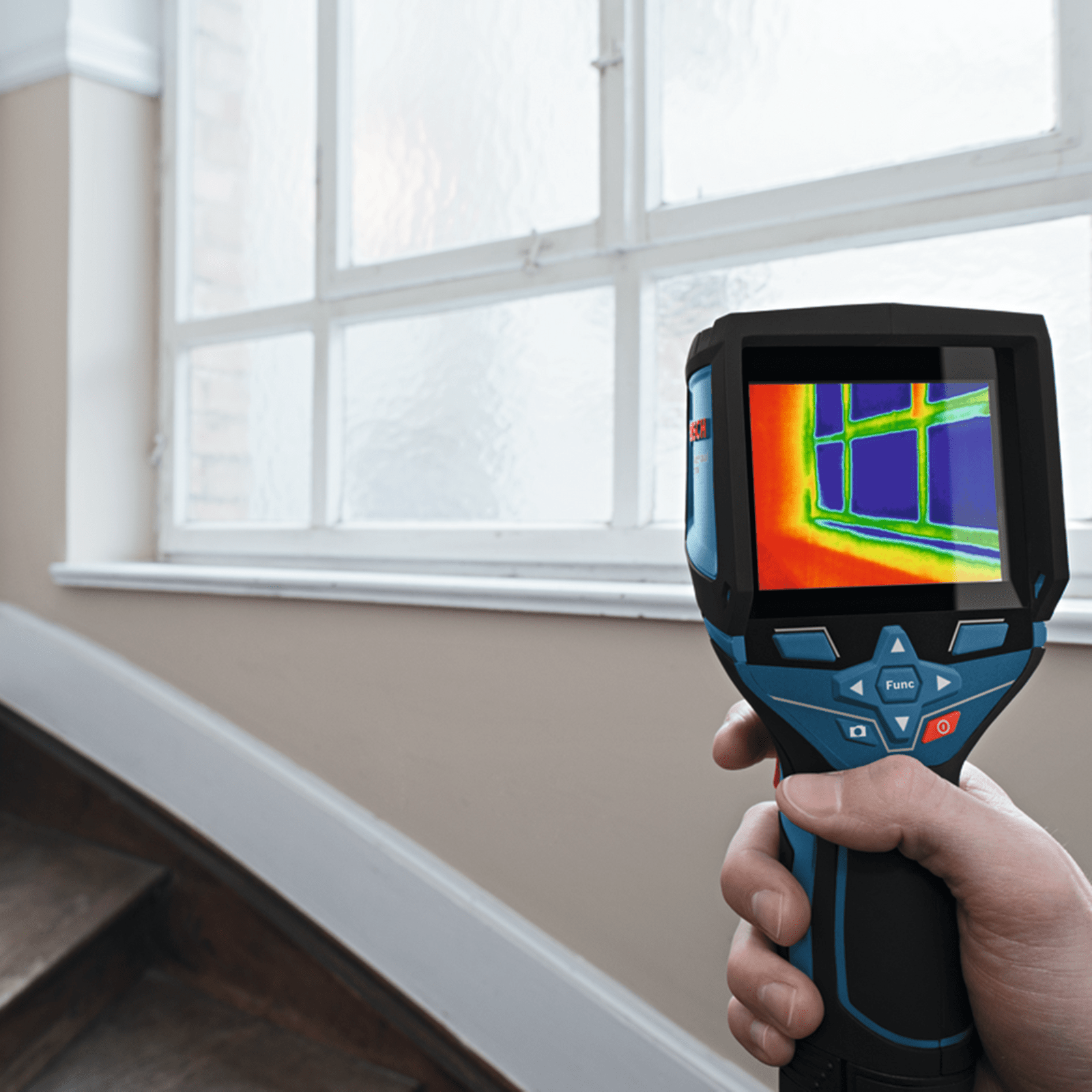

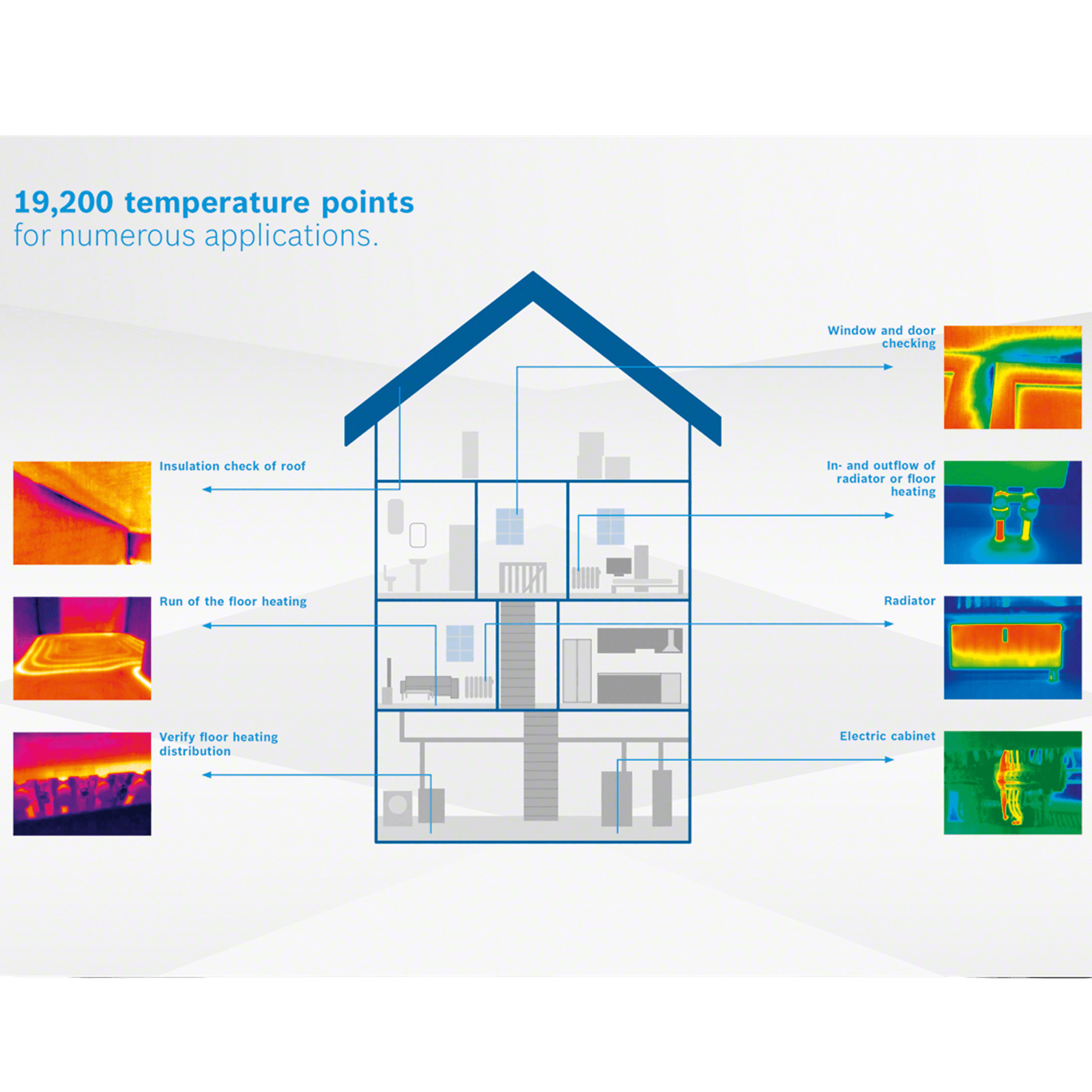

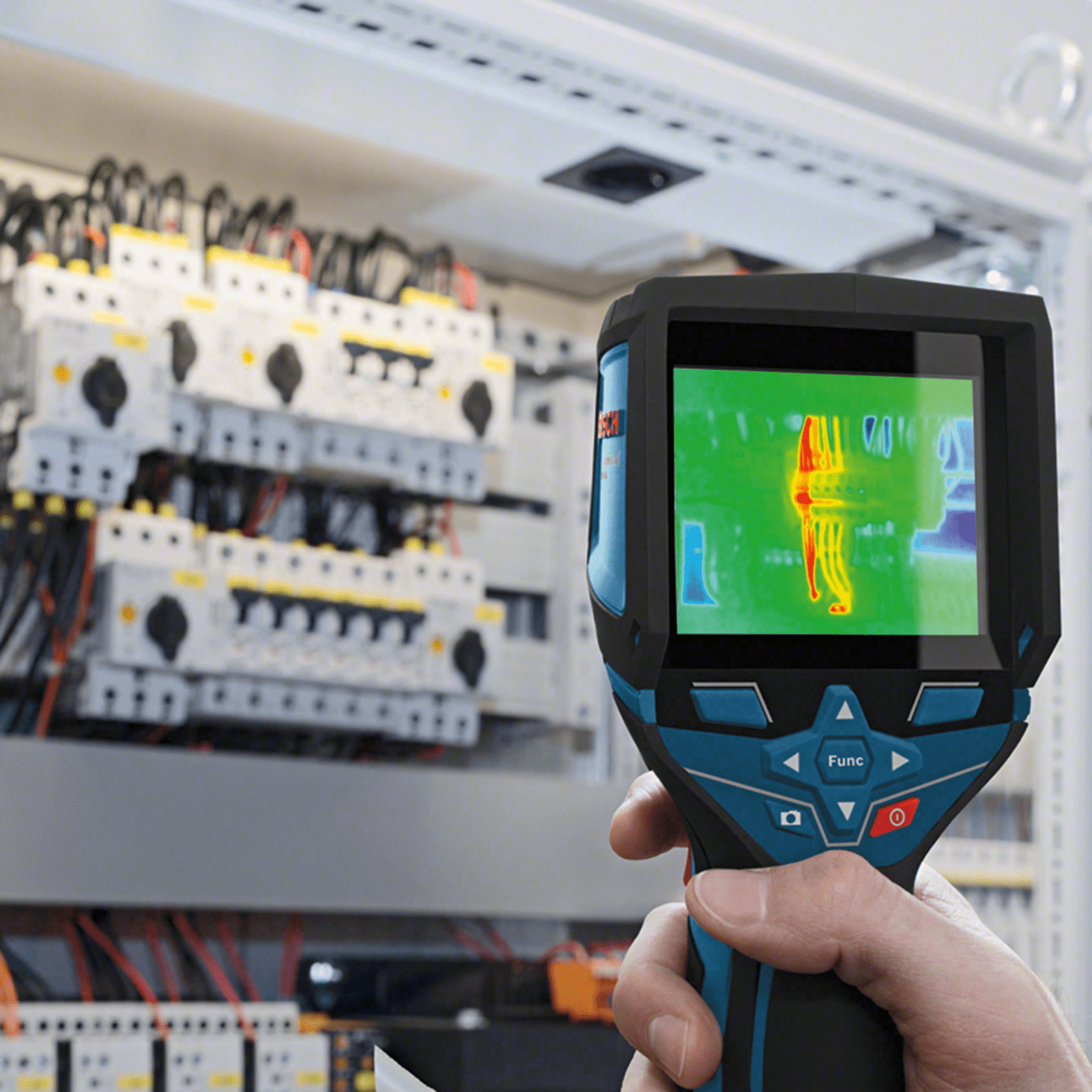

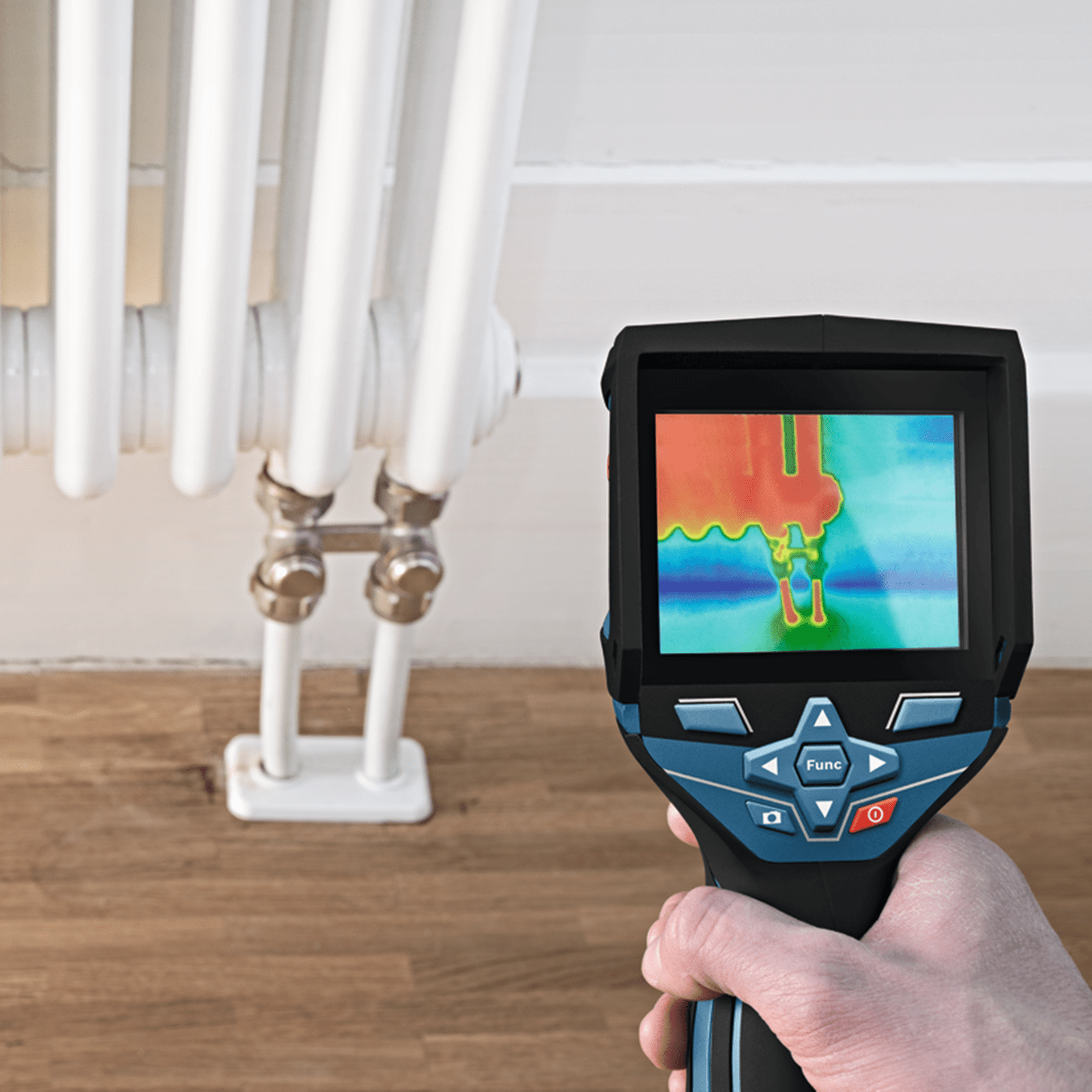

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.

Specifications:
Battery voltage: 12.0 V
Measurement range: -10 °C to +400 °C
Measuring accuracy of IR: ±3.0 °C
Resolution: 0.1 °C
Thermal sensitivity (NETD):

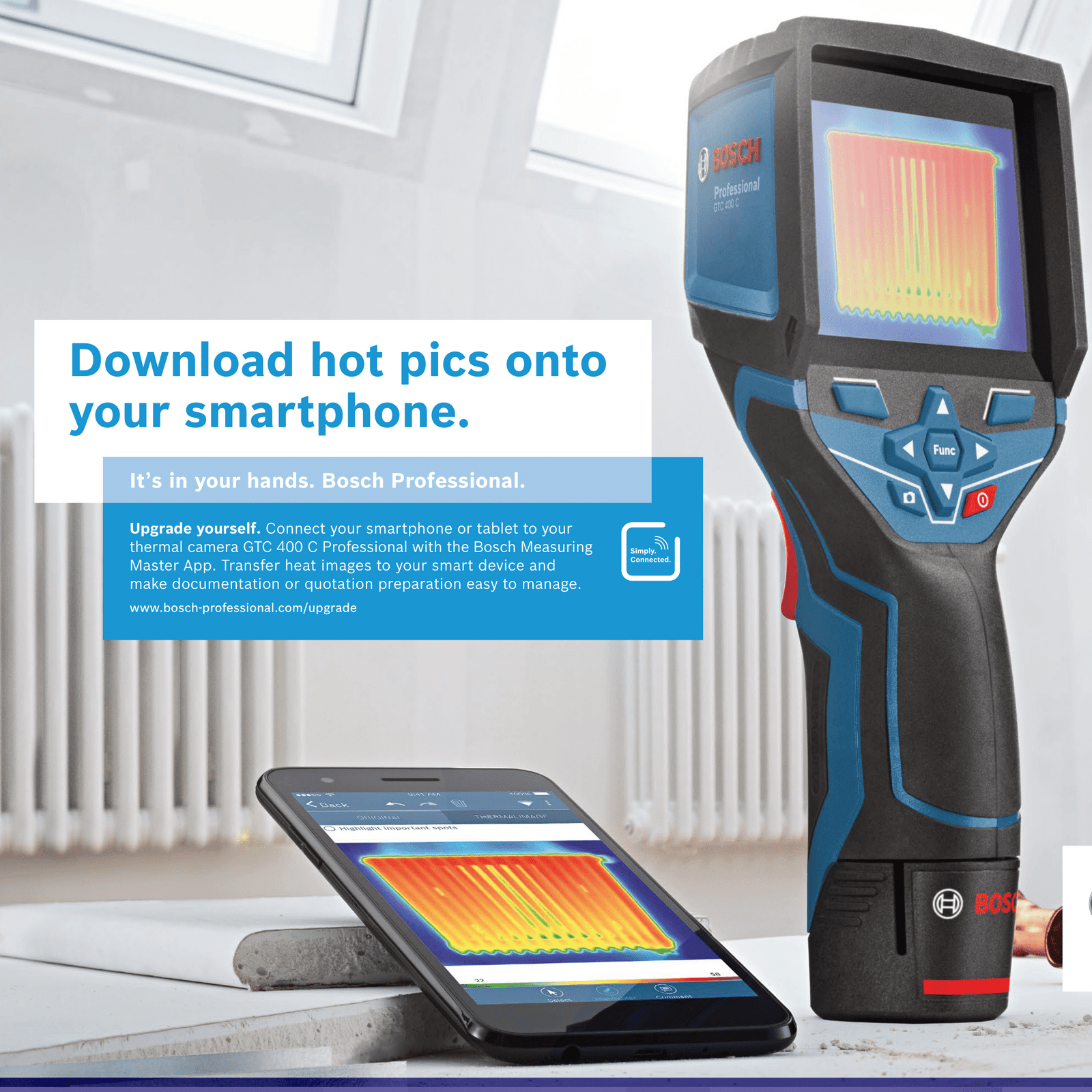

• Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
• Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
• Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
