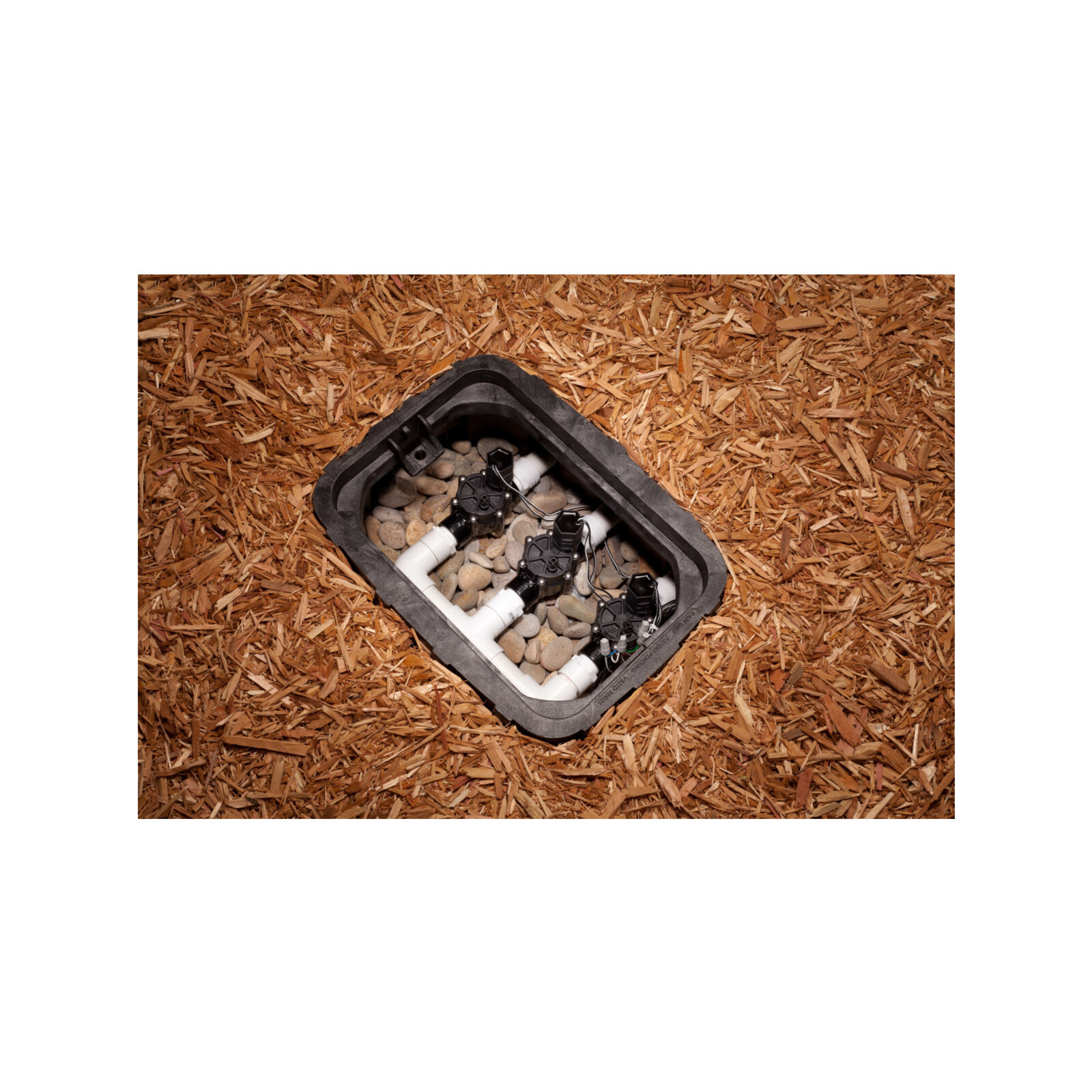

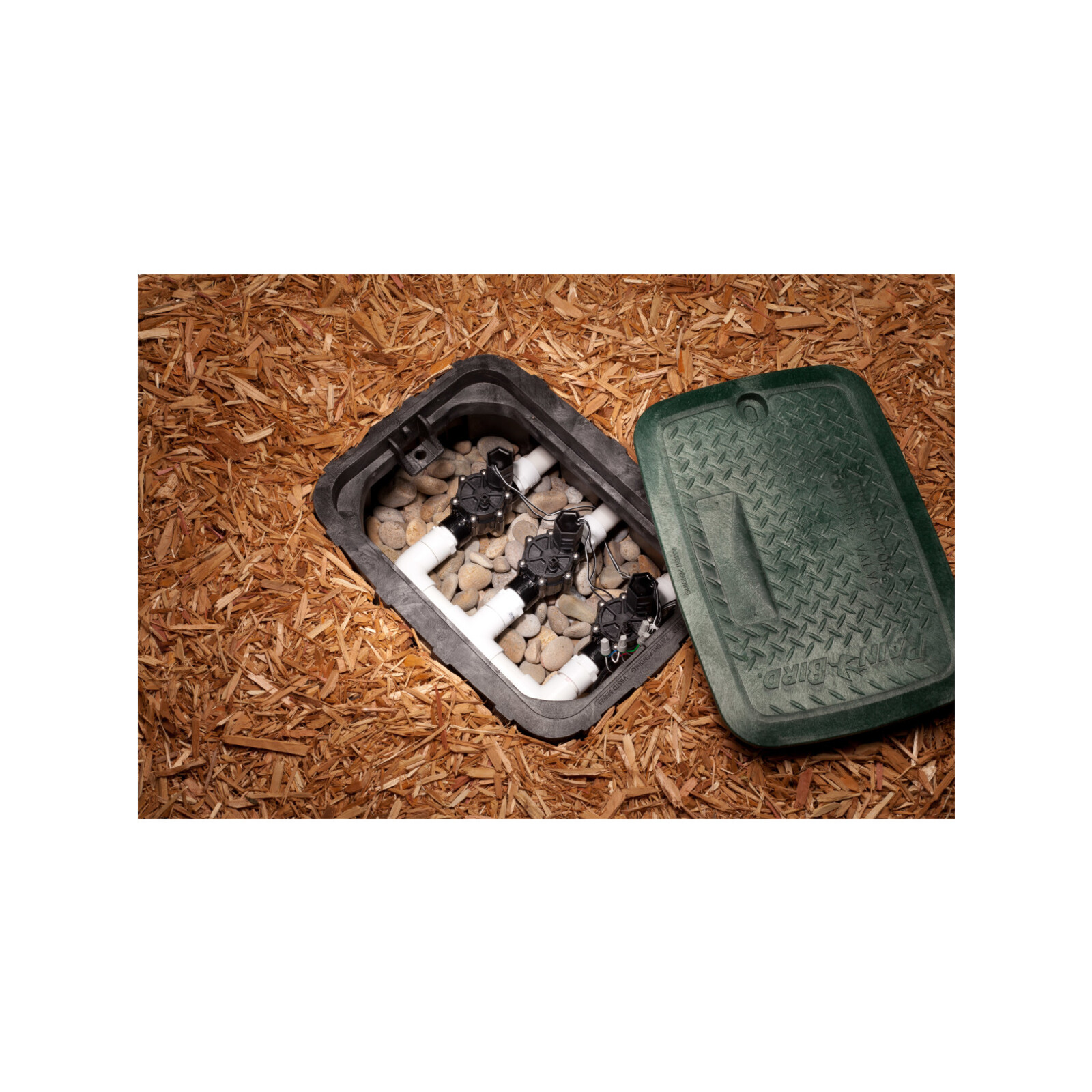

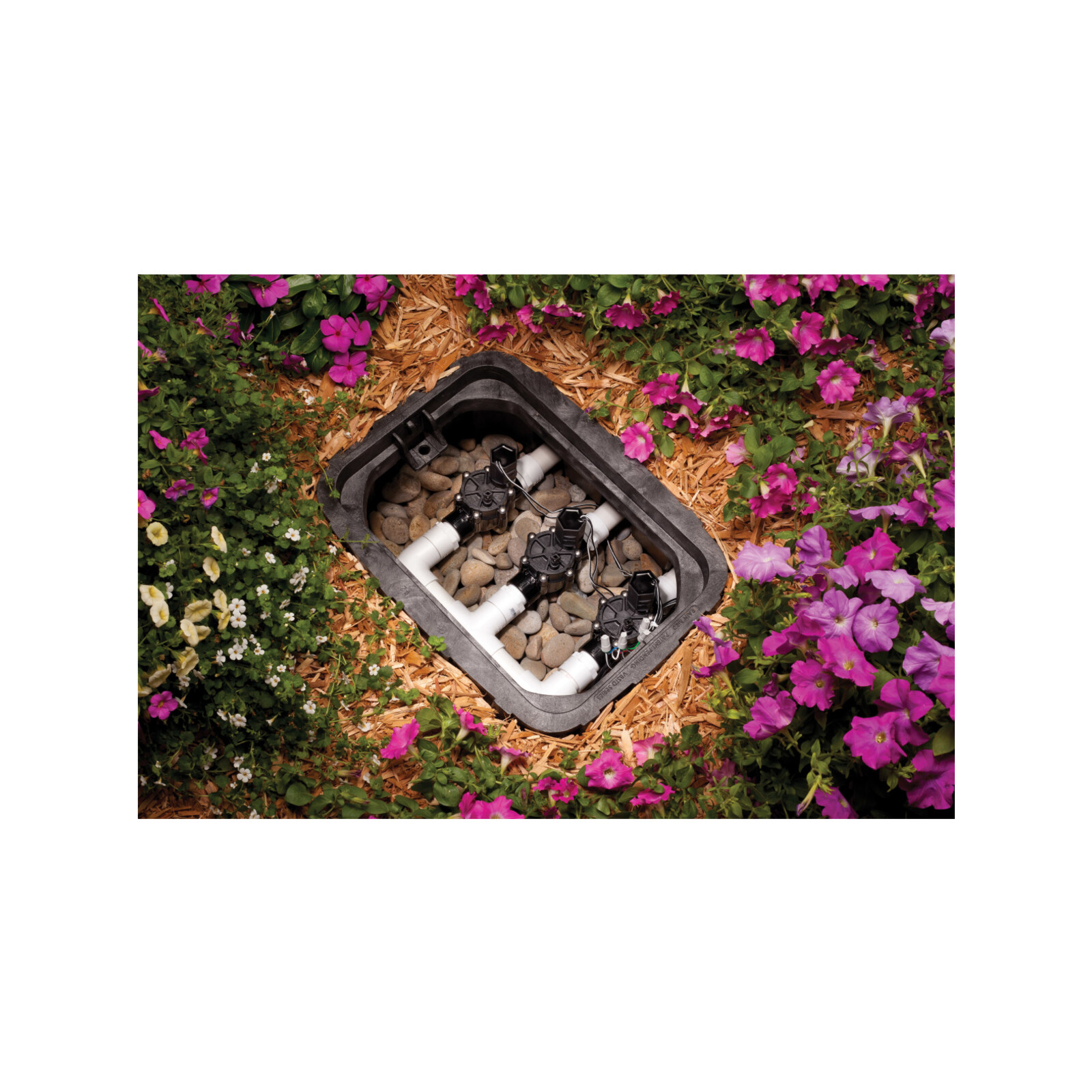

This residential and light commercial grade in-line irrigation valve replaces Rain Bird and other valves installed below ground with a 25mm (1 in.) BSP threaded inlet and outlet. It can be used with any 24 volt AC irrigation timer. Its unique reverse-flow design helps prevent flooding in the event of internal diaphragm failure, keeping the valve closed and saving water. This valve can be applied with all types of watering devices, including Rain Bird spray heads and rotors. Install in-line valves in locations where the use of a pressure vacuum breaker (PVB) or a double-check valve is required by code to protect against backflow. Check your local codes to determine what type of valve is required. After installation and before start-up, always the flush system of dirt and debris manually using the valve’s external bleed screw.

• Reliable, non-clogging design
• Reverse flow reduces stress on diaphragm for dependable operation
• In-line design minimizes pressure loss of dirt and debris during installation and system start-up
• 24 VAC, 50/60 Hz automatic operation or manual activation with bleed screw
• Works with any standard sprinkler timer
